> > Teseo AP Female Outlet Plate Complete
Teseo AP Female Outlet Plate Complete
Teseo AP Female Outlet Plate Complete
Teseo AP Female Outlet Plate Complete
Teseo AP Female Outlet Plate Complete

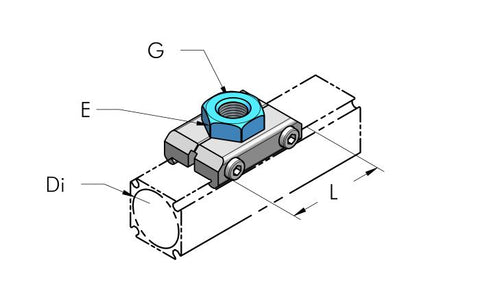

Teseo AP Female Outlet Plate Complete dimensional drawing

Teseo AP Female Outlet Plate Complete

£10.76 +VAT

SKU: 006 020 033

For convenient connection of hoses, air tools, blow guns etc.

Di
(mm)		 G
(BSP) 		L
(mm) 		E
(mm)		 Part No. Weight
(g)
20 (AP22) 1/4" 46 22 006 020 033 36
20 (AP22) 3/8" 46 22 006 020 034 40
25 (AP28) 1/4" 46 22 006 025 033 37
25 (AP28) 3/8" 46 22 006 025 034 46
25 (AP28) 1/2" 46 30 006 025 035 55
32 (AP36) 1/4" 50 30 006 032 033 70
32 (AP36) 3/8" 50 30 006 032 034 65
32 (AP36) 1/2" 50 30 006 032 035 70
40 (AP45) 1/8" 70 36 006 040 032 148
40 (AP45) 1/4" 70 36 006 040 033 140
40 (AP45) 3/8" 70 36 006 040 034 135
40 (AP45) 1/2" 70 36 006 040 035 130
40 (AP45) 3/4" 70 36 006 040 036 120
50/63 (AP54/68) 1/4" 74 50 006 050 033 195
50/63 (AP54/68) 1/2" 74 50 006 050 034 190
50/63 (AP54/68) 3/4" 74 50 006 050 035 215
50/63 (AP54/68) 1" 74 50 006 050 036 195
