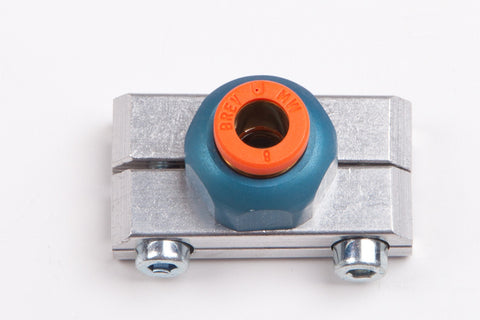

Teseo AP Quick Fit Outlet Plate Complete

£16.76 +VAT

SKU: 006 020 084

To produce an outlet point as required off a pipe run. For convenient connection of nylon tube via a push-fit connection.

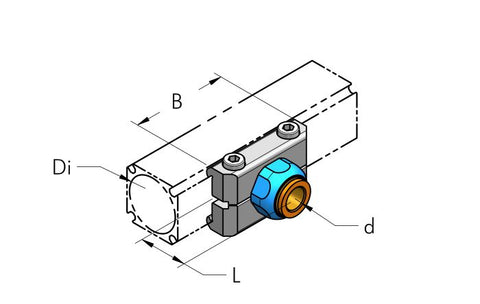

Di
(mm)
d
(mm)
B
(mm)
L
(mm)
Part No. Weight
(g)
20 (AP22) 8 46 23 006 020 084 112
20 (AP22) 10 46 26 006 020 085 190
25 (AP28) 8 46 23 006 025 084 235
25 (AP28) 10 46 23 006 025 085 246
32 (AP36) 8 50 30 006 025 084 80
32 (AP36) 10 50 30 006 032 085 80
32 (AP36) 12 50 30 006 032 086 80
40 (AP45) 10 70 23 006 040 085 318
40 (AP45) 12 70 26 006 040 086 370
