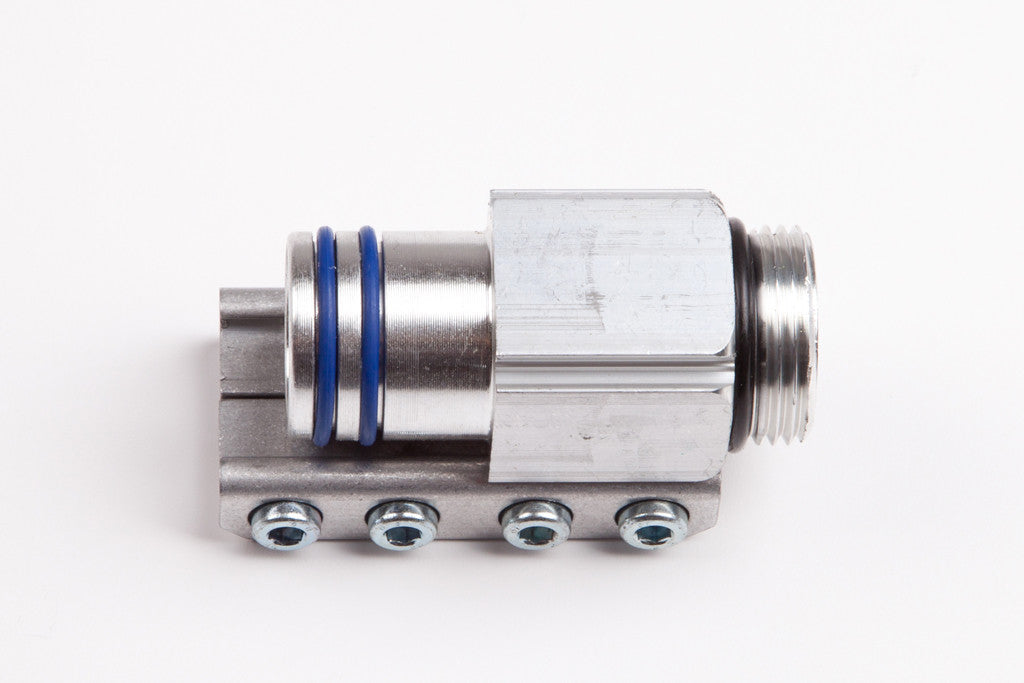

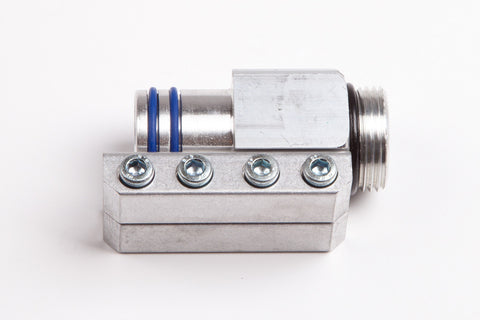

Teseo AP Male Threaded Terminal Complete
£10.76 +VAT
SKU: 006 020 030Provides a BSP thread at the end of a pipe run.

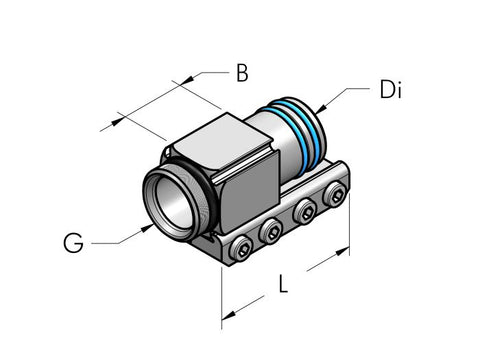

D (mm) |
G (BSP) |
L (mm) |
B (mm) |
Part No. |
Weight (g) |
20 (AP22) | 1/2" | 46 | 24 | 006 020 030 | 57 |
25 (AP28) | 3/4" | 60 | 28 | 006 025 030 | 110 |
32 (AP36) | 1" | 46 | 11 | 006 032 030 | 200 |
32 (AP36) | 1 1/4" | 46 | 13 | 003 032 029 | 255 |
40 (AP45) | 1 1/4" | 80 | 35 | 006 040 029 | 245 |
50 (AP54) | 1 1/2" | 150 | 75 | 006 050 029 | 655 |
63 (AP68) | 2" | 90 | 12 | 006 063 030 | 390 |
63 (AP68) | 2 1/2" | 90 | 13 | 006 063 031 | 450 |
