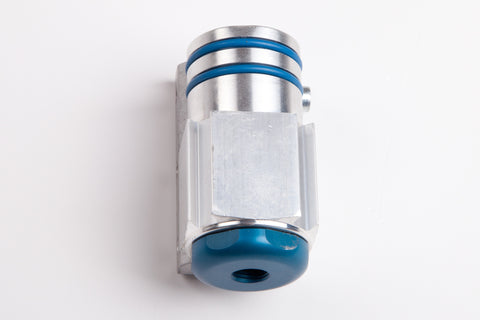

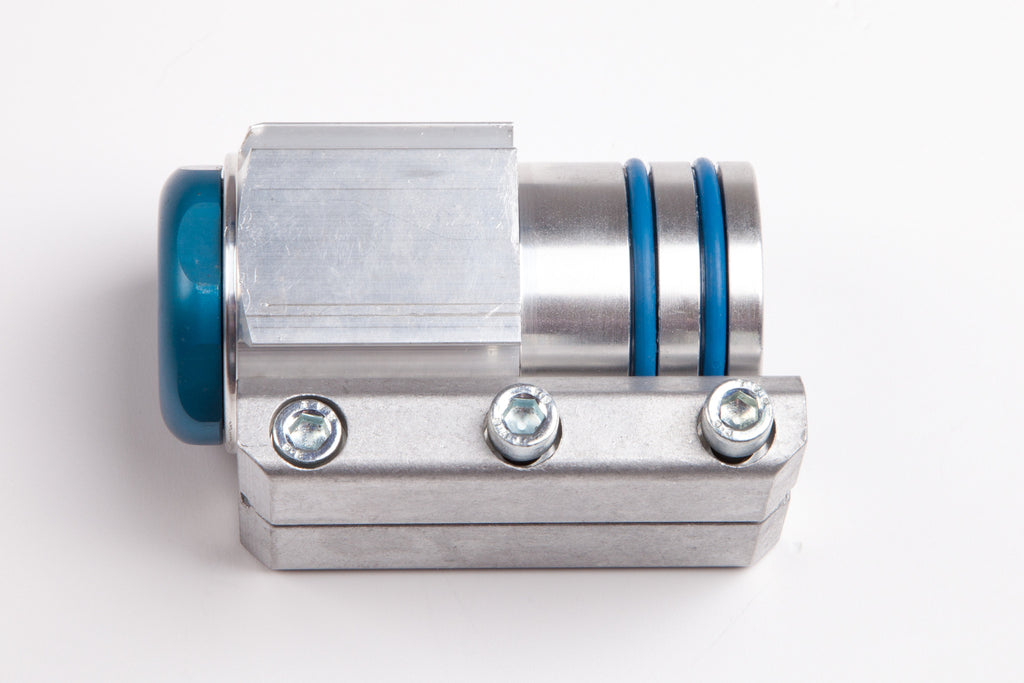

Teseo AP Terminal With Threaded Hole Complete

£20.48 +VAT

SKU: 006 032 025

Terminal with a BSP threaded hole.

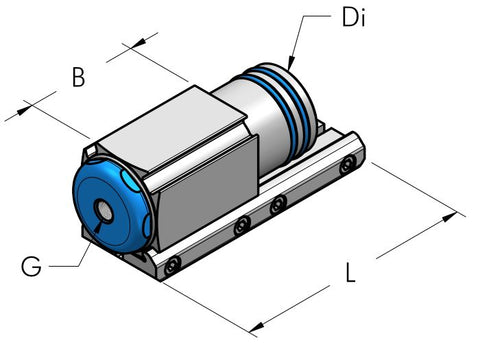

D
(mm)
G
(BSP)
L
(mm)
B
(mm)
Part No. Weight
(g)
32 (AP36) 1/4" 46 30 006 032 025 200
32 (AP36) 1/2" 46 30 006 032 031 200
40 (AP45) 1/8" 80 35 006 040 015 295
40 (AP45) 1/4" 80 35 006 040 025 260
40 (AP45) 3/8" 80 35 006 040 016 290
40 (AP45) 1/2" 80 35 006 040 017 280
40 (AP45) 3/4" 80 35 006 040 018 270
50 (AP54) 1/8" 150 75 006 050 015 705
50 (AP54) 1/4" 150 75 006 050 025 700
50 (AP54) 1/2" 150 75 006 050 017 690
50 (AP54) 3/4" 150 75 006 050 018 670
50 (AP54) 1" 150 75 006 050 019 655
63 (AP68) 1/4" 90 - 006 063 025 660
