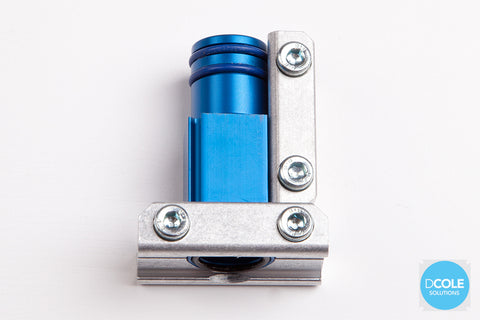

Teseo AP Reduction Plate Complete
£21.71 +VAT
SKU: 006 020 039Easily reduce pipe size with the Reduction Plate.

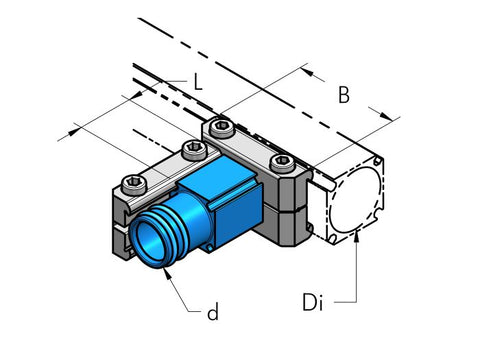

| Di (mm) |
d (mm) |
B (mm) |
L (mm) |
Part No. |
Weight (g) |
| 25 (AP28) | 20 | 46 | 24 | 006 020 039 | 112 |
| 32 (AP36) | 20 | 50 | 50 | 006 032 061 | 140 |
| 32 (AP36) | 25 | 50 | 42 | 006 032 062 | 155 |
| 40 (AP45) | 20 | 70 | 24 | 006 040 037 | 190 |
| 40 (AP45) | 25 | 70 | 28 | 006 040 038 | 235 |
| 40 (AP45) | 32 | 70 | 28 | 006 032 039 | 300 |
| 50/63 (AP54/68) | 20 | 74 | 35 | 006 050 038 | 318 |
| 50/63 (AP54/68) | 25 | 74 | 60 | 006 050 039 | 370 |
| 50/63 (AP54/68) | 32 | 74 | 28 | 006 032 060 | 370 |
| 50/63 (AP54/68) | 40 | 74 | 35 | 006 040 039 | 370 |
