Teseo AP Hanging Bracket
£6.72 +VAT

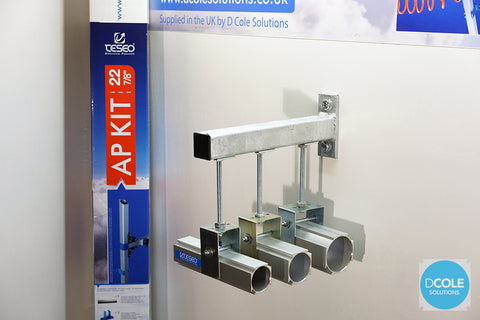

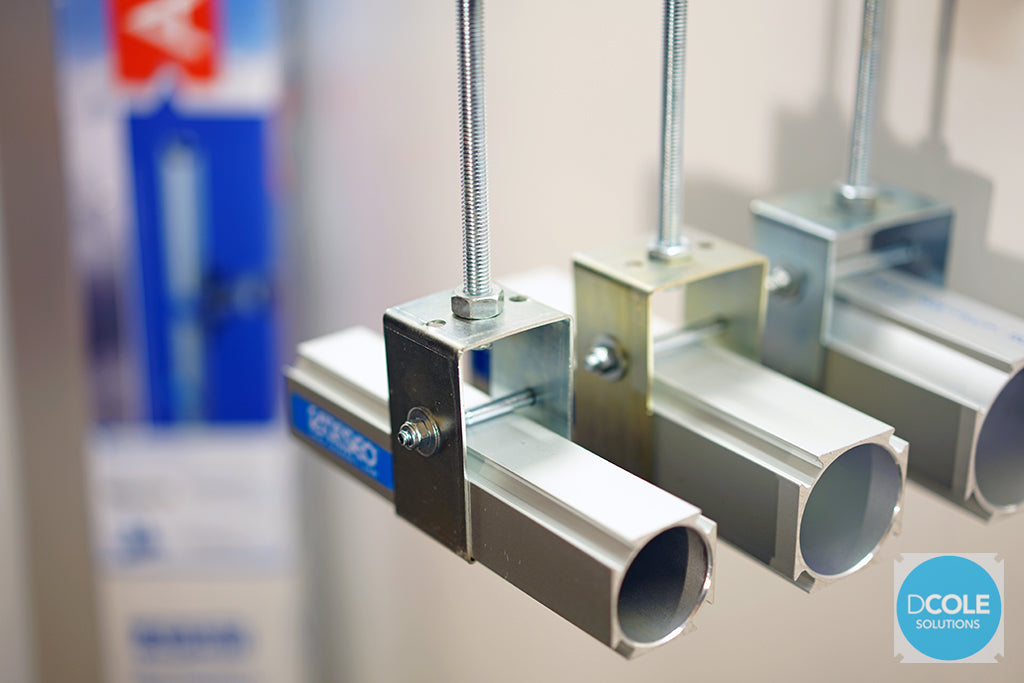

SKU: 006 032 073The convenient solution to hang AP pipe from high level. Comes with zinc plated nut & bolt.

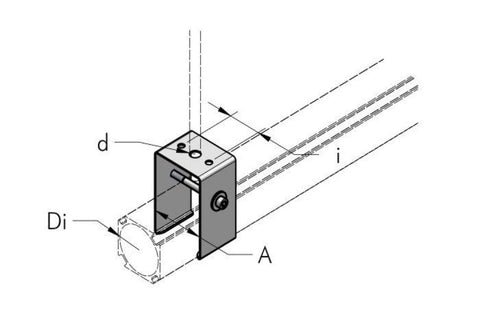

| Di (mm) |
A (mm) |
d (mm) |
I (mm) |
Part No. |
Weight (g) |
| 32 (AP36) | 36 | 11 | 24 | 006 032 073 | 100 |
| 40 (AP45) | 45 | 11 | 30 | 006 040 073 | 274 |
| 50 (AP54) | 55 | 11 | 36 | 006 050 073 | 302 |
| 63 (AP68) | 69 | 11 | 36 | 006 063 073 | 323 |
