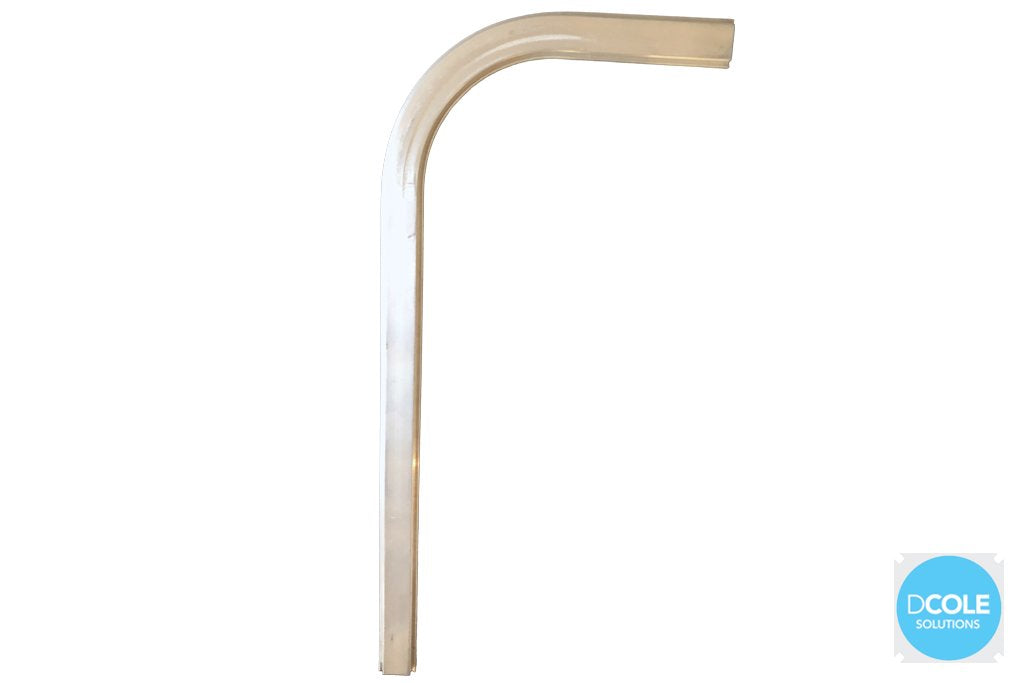

Teseo AP 90° Curved Pipe

£9.39 +VAT

SKU: 804 020 050

Perfect for drops to low level and an alternative to an L Joint.

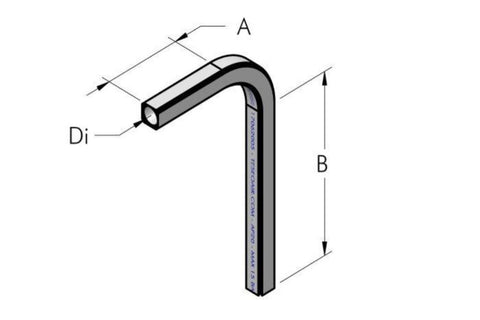

Di
(mm)
A
(mm)
B
(mm)
R
(mm)
Part No. Weight
(KG)
Minimum
Qty
AP22 80 300 77 804 020 050 0.2 N/A
AP22 310 570 77 804 020 100 0.4 N/A
AP22 370 2010 77 804 020 250 0.9 4
AP28 115 250 77 804 025 050 0.3 N/A
AP28 310 570 77 804 025 100 0.6 N/A
AP28 370 2010 77 804 025 250 1.5 4
AP36 135 255 150 804 032 050 0.8 N/A
AP45 135 255 150 804 040 050 1 N/A
AP54 160 230 150 804 050 050 1.05 N/A
AP68 250 360 250 804 063 050 1.3 N/A

Minimum Quantity Requirements
During transit pipe can bend if sent under the minimum quantity requirements.
When purchased in the correct quantities, we can pack the pipework together which forms a rigid base which minimises the risk of bending.
